2-input-2-output analog  two-wire 4-20mA isolation conditioning transmitter

Features:
◆ Small size, low cost, No correction directly use
◆ two-port isolation (input, output)
◆ 2-input-2-output Mutual isolation between channels
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (3000VDC/60S)
◆ Low temperature drift (35PPM/℃)
◆ Low impedance (voltage drop <3V, 20mA)
◆ Wide Industrial class operation temperature (-45~+85℃)
◆ Wide voltage input (7.5V~32V)
◆ High reliability (MTBF>50Wan hour)
◆ Passed CE Certificate
◆ International standard signal input and output (4~20mA/0~20mA)

Application:
◆ DC current signal isolation, conversion and amplification
◆ Analog signal ground interference suppression and analog isolation, acquisition
◆ 4~20mA/0~20mA sensor signal isolation, transformation and signal conversion
◆ instrumentation and sensor signal transceiver
◆ power isolation monitoring industrial site
◆ Analog signal data isolation, acquisition, conversion, and distance transmission
◆ Industrial field signal isolation and conversion, and distance transmission without distortion
◆ power monitoring, medical equipment isolation barrier
◆ overcome inverter, large motors, power equipment, acquisition systems, DCS and PLC Field interference

General Description:

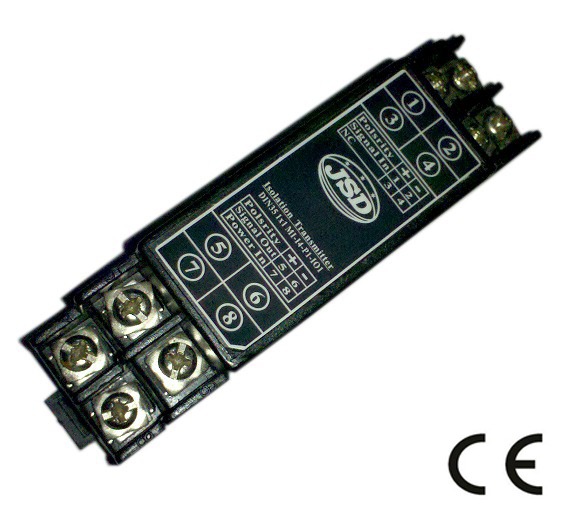

Jie Sheng Da Technology JSD TAW-2002D-100L-P two-wire passive single-channel analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS system. The product is isolated between input and output , the isolated voltage is up to 3000VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.
Jie Shengda Technology JSD TAW-2002D-100L-P series isolation amplifier has PCB board soldering and standard DIN 35mm rail mounting ,rail mounting can be achieved analog signal one in one out、two in two out、three in three out , users just need to wiring can be used.

Selections example:
1、Signal input 1:4-20mA; signal output 1:4-20mA; Signal input 2:4-20mA; signal output 2:4-20mA;  Model: JSD TAW-2002D-100L-P
