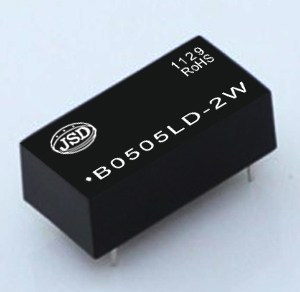

ISOLATED & UNREGULATED POSITIVE OUTPUT DC-DC CONVERTER BLS\LD SERIES

FEATURES
◆ Small size,low cost
◆ SIPDIP Package
◆ Low Ripple and good EMC features
◆ Temperature Range -40°C ~ +85°C
◆ No Heat Sink Required
◆ No External Component Required
◆ Internal SMD construction
◆ Industry Standard Pinout
◆ RoHS Compliance
◆ Input voltage: 5VDC/12VDC/15VDC/24VDC
◆ Output voltage: 3.3VDC/5VDC/12VDC/15VDC/24VDC
◆ Product Power: 0.1 ~ 2W
◆ Product Accuracy: ± 5%

APPLICATIONS
BxxxxLSLD-xW Series are specially designed for applications where a single power supply is highly isolated from the
input power supply in a distributed power supply system on a circuit board.
These products apply to
◆ Where the power supply system distribution , the digital circuit isolation and voltage conversion
◆ Where the security equipment, broadcasting equipment, power supply, isolation and voltage conversion
◆ Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
◆ Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
◆ Where the regulation of the output voltage and the output ripple and noise are demanded.
