ISOLATED & UNREGULATED SINGLE OUTPUT DC-DC CONVERTER  F SERIES

FEATURES:
◆ Small size,low cost
◆ SIP/DIP Package
◆ Low ripple and good EMC features
◆ 3000VDC isolation voltage
◆ Temperature Range -40°C ~ +85°C
◆ No Heat Sink Required
◆ No External Component Required
◆ Internal SMD construction
◆ Industry Standard Pinout
◆ RoHS Compliance
◆ Input voltage: 3.3VDC/5VDC/12VDC/15VDC/24VDC
◆ Output voltage: 3.3VDC/5VDC/12VDC/15VDC/24VDC
◆ Product Power: 0.1 ~ 2W


APPLICATIONS:
◆ Where the power supply system distribution , the digital circuit isolation and voltage conversion.
◆Where the RS-485/RS-232,CAN bus and other digital communication interface dedicated isolated power.
◆ Where the digital circuit isolation and voltage transformation
◆ Where the intelligent control, security facilities, electrical power isolation and transformation of Radio
◆ Where the instrumentation, sensor signal amplifier circuit high isolation power
◆ Where the electrical equipment, medical equipment supply security isolation
◆ Where the power ground circulation suppress interference
◆ Where provide dual voltage power supply to op-amp circuit.
◆ Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
◆ Where isolation is necessary between input and output (isolation voltage ≤3000VDC);
◆ Where the regulation of the output voltage and the output ripple and noise are demanded.

DATA DOWNLOAD:

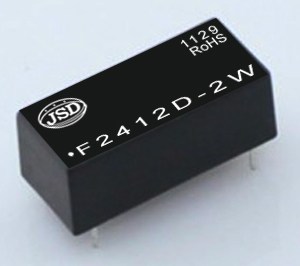

DC-DC CONVERTER  PICTURE:
