mV-LEVEL SIGNAL ISOLATION AMPLIFIER
Features:
● Low cost, small size, DIP24 packages UL94-V0 flame retardant standard
●Signal isolation and conversion by Adding multi-turn potentiometer
●Three-port isolation (input, output and power supply)
●Isolation voltage (2500VDC/60s)
● Power Supply: 5VDC, 12VDC, 15VDC, 24VDC
●Analog signals transmission or amplification ,e.g
 0~10mV/0~20mV/0~50mV/0-75mV/0-100mV
● International standard signal output: 0~5V/0~10V/1~5V/2~10V
●provide a set of isolated power supply: 5VDC ~ 24VDC
● Provide input 1.25V, output 5V, 2% reference voltage source
●High accuracy: 0.1%, 0.2%;
●high linearity (non-linearity <0.1%)
●strong anti-interference and Anti-high-frequency signal interference
● Industrial class operation temperature (-45 ~ +85 ℃)
Applications:
● mV-level voltage signal isolation, conversion and amplification
● Analog signal ground interference suppression
● instrumentation and sensor signal transceiver
●Electrical Isolation Control industrial field
● Analog signal data isolation, acquisition and conversion
● industrial field signal isolation and conversion
● PLC & FA motor signal control and isolation
● non-power signal transmission
● Signal remote transmission without distortion
● Power monitoring, medical equipment and isolation barrier
General Description:
JIE Sheng Technology JSD OI-MS series mV-level isolation amplifier is a Hybrid integrated circuits witch make the mV-level analog signal Proportionally converted into a standard isolation voltage signal,The chip integrates a set of multi-channel high-isolation DC / DC micro power supply and several high-performance signal isolation converter for 0-10mV/ 0-20mV/0-30mV/0-45mV/0-50mV/0-60mV/0-75mV/0-100mV such small signal amplification and conversion. In addition to the chip isolated power supply for the internal amplifier circuit, you can also outward (signal input/output terminal) provides two isolated DC power supply and two reference voltage source, for extended use of an external circuit, such as a bridge circuit , the reference circuit, and sensors to provide power. SMD technology design and new isolation technologies make the chip achieve three-port isolation(input, output and power supply),and the isolation voltage between them is up to 2500 VDC, and can meet the industrial temperature range, Operation in the wet and shaking harsh environments.
Download：

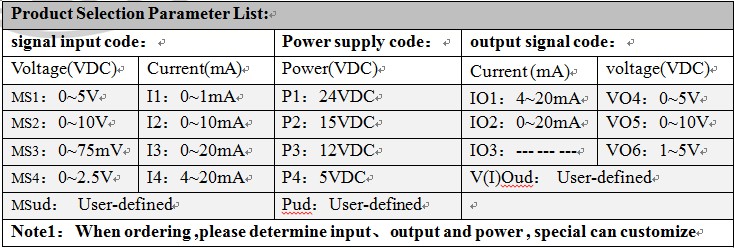

selection example：
example1：  input：0-50mV；   output：0-5V；   power supply：5VDC；      model NO：JSD OI-MS3-P4-VO4

example2：   input：0-10mV；  output:4-20mA；  power supply：24VDC；     model NO：JSD OI-MS1-P1-IO1

example3：    input：0-30mV； output：0-10V；power supply：12VDC；      model NO：JSD OI-MSud-P3-VO5

example4：   input：0-75mV；  output:4-20mA；  power supply：15VDC；     model NO：JSD OI-MS5-P2-IO2

example5：   input：0-100mV；  output:0-2.5V；  power supply：24VDC；     model NO：JSD OI-MS5-P1-VOud
