FIXED INPUT, ISOLATED & REGULATED SINGLE OUTPUT DC-DC CONVERTER IB SERIES

FEATURES:
◆ Small size,low cost
◆ SIP/DIP Package
◆ Low Ripple and good EMC features
◆ Temperature Range: -40°C ~ +85°C
◆ No Heat Sink Required
◆ No External Component Required
◆ 1KVDC Isolation
◆ Continuous Short Circuit Protection
◆ Internal SMD construction
◆ Industry Standard Pinout
◆ RoHS Compliance
◆ Input voltage: 5VDC/12VDC/15VDC/24VDC
◆ Output voltage: 3.3VDC/5VDC/12VDC/15VDC/24VDC
◆ Product Power: 0.1 ~ 2W
◆ Product Accuracy: ± 2%

APPLICATIONS:
◆ Where the power supply system distribution , the digital circuit isolation and voltage conversion
◆Where the security equipment, broadcasting equipment, power supply, isolation and voltage conversion
◆ Where the switching power supply, power conversion and distribution of power supply
◆ Where the sensors, transmitters and analog circuit power isolation
◆ Where the digital circuit isolation and voltage transformation
◆ Where the  intelligent control, security facilities, electrical power isolation and transformation of Radio
◆ Where the Power ground circulation suppress interference
◆ Where the voltage of the input power supply is fixed (voltage variation ≤±5%)
◆ Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
◆Where the regulation of the output voltage and the output ripple and noise are demanded.

DATA DOWNLOAD:

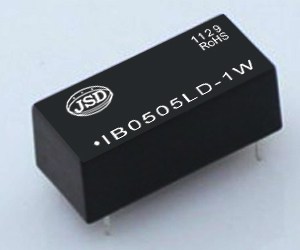

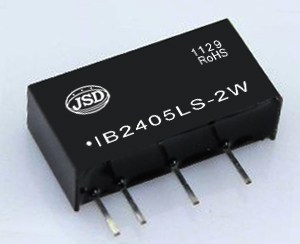

PICTURE:
