1-input-3-output Positive & negative analog signal isolation transmitter
Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output, power supply )
◆ 1-input-3-output ,isolated between channels
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Low temperature drift (35PPM/℃)
◆ Wide Industrial class operation temperature (-45~+85℃)
◆ High reliability (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC options)
◆ International standard signal input and output (0~5V/0~10V/0~±10V/4~20mA/ 0~±20mA, etc.)
Application:
◆ DC current/voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and remote transmission
◆ analog signal ground interference suppression and data isolation/collection
◆ 4-20mA/0-20mA/0-5V/0-10V, etc signal isolation and transformation
◆ instrumentation and sensor signal transceiver
◆ non-power signal transmission
◆ signal transmission distance without distortion
◆ power monitoring, medical equipment isolation barrier
◆ Sensor 4-20mA analog signal acquisition and conversion
◆ PLC/DCS/PC system analog signal acquisition, isolation, conversion and distribution
Download :  http://www.jsd-iae.com/down/201278233925608.pdf

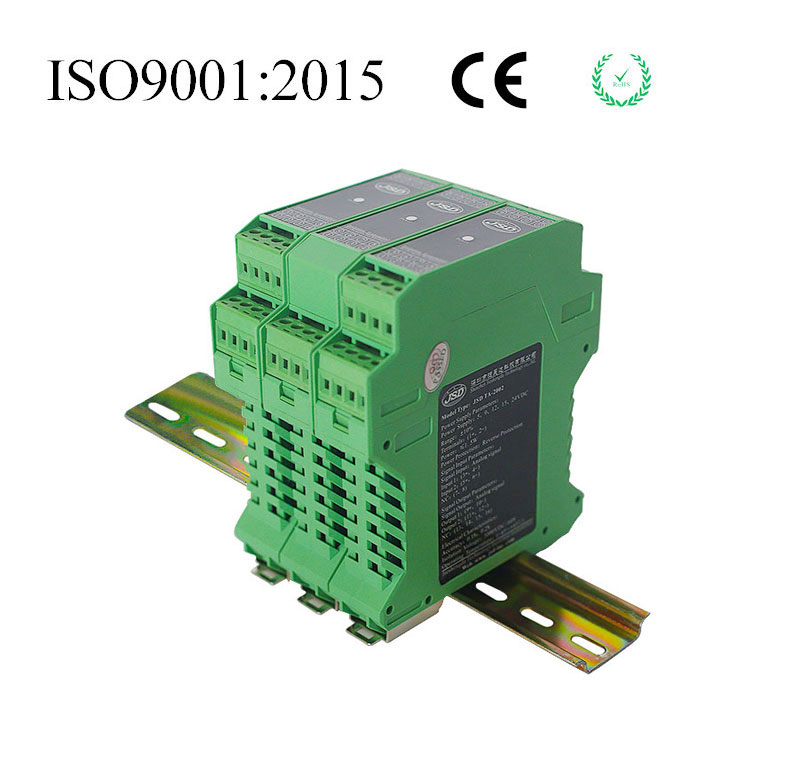

Isolation transmitter picture:
