Product Name: |
2-input- 2-output Positive & negative analog signal isolation transmitter |
Specification: |
115x100x23mm |
Memo: |
High accuracy(0.1% F.S,0.2% F.S)|High linearity(0.1% F.S)|High isolation voltage(2500VDC/60S)|Low temperature drift(35PPM/℃) |
Product Category: |
Isolation transmitter |
| |
|
| Product Description |
2-input- 2-output Positive & negative analog signal isolation transmitter
Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output, operating supply)
◆ 2-input- 2-output ,isolated between channels
◆ High accuracy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (3000VDC/60S)
◆ Low temperature drift (35PPM/ ℃)
◆ Wide temperature range (-45 ~ +85 ℃)
◆ High reliability (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply options)
◆ International standard signal input and output (0-5V/0-10V/0-±10V/4-20mA/0-±20mA, etc.)
Application:
◆ DC current/voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and remote transmission
◆ analog signal ground interference suppression and data isolation/collection
◆ 4-20mA/0-20mA/0-5V/0-10V, etc signal isolation and transformation
◆ instrumentation and sensor signal transceiver
◆ non-power signal transmission
◆ signal transmission distance without distortion
◆ power monitoring, medical equipment isolation barrier
◆ Sensor 4-20mA analog signal acquisition and conversion
◆ PLC/DCS/PC system analog signal acquisition, isolation, conversion and distribution
Download :

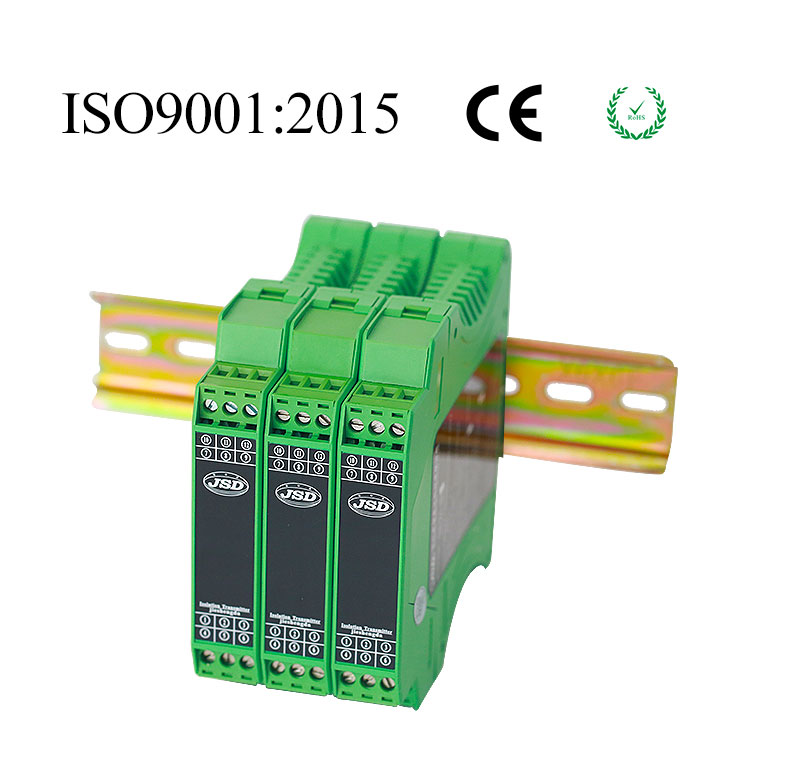

Isolated Transmitter picture:
|
|
|
