Product Name: |
three input three output Positive and negative bidirectional analog signal isolation transmitterSignal isolation transmitter |
Specification: |
115x100x23mm |
Memo: |
High accurrcy ,high linearity,high isolation voltage,international standard signal input and output,international standards DIN35mm rail mounting |
Product Category: |
Isolation transmitter |
| |
|
| Product Description |
three input three output Positive and negative bidirectional analog signal isolation transmitter
Product Features:
◆ Small size, low cost, international standards DIN35mm rail mounting
◆ three-port isolation (input, output, operating supply isolated from each other)
◆ three-channel input, three-channel output, mutual isolation between channels
◆ High accurrcy (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Very low temperature drift (35PPM / ℃)
◆ Industrial temperature range (-45 ~ +85 ℃)
◆ products are reliable (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply, and other options)
◆ international standard signal input and output (0 ~ 5V/0 ~ 10V/0 ~ ± 10V/4 ~ 20mA/0 ~ ± 20mA, etc. Multiple choice)
Application:
◆ DC current / voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and long-term transmission
◆ analog signal ground interference suppression and data isolation, collecting
◆ 4-20mA/0-20mA/0-5V/0-10V such signal isolation and transformation
◆ instrumentation and sensor signal transceiver
◆ non-power signal transmission
◆ signal transmission distance without distortion
◆ power monitoring, medical equipment isolation barrier
◆ Sensor 4-20mA analog signal acquisition and other conversion functions to achieve
◆ PLC/ DCS/PC analog signal acquisition system, isolation, conversion and signal distribution functions
Data Download :

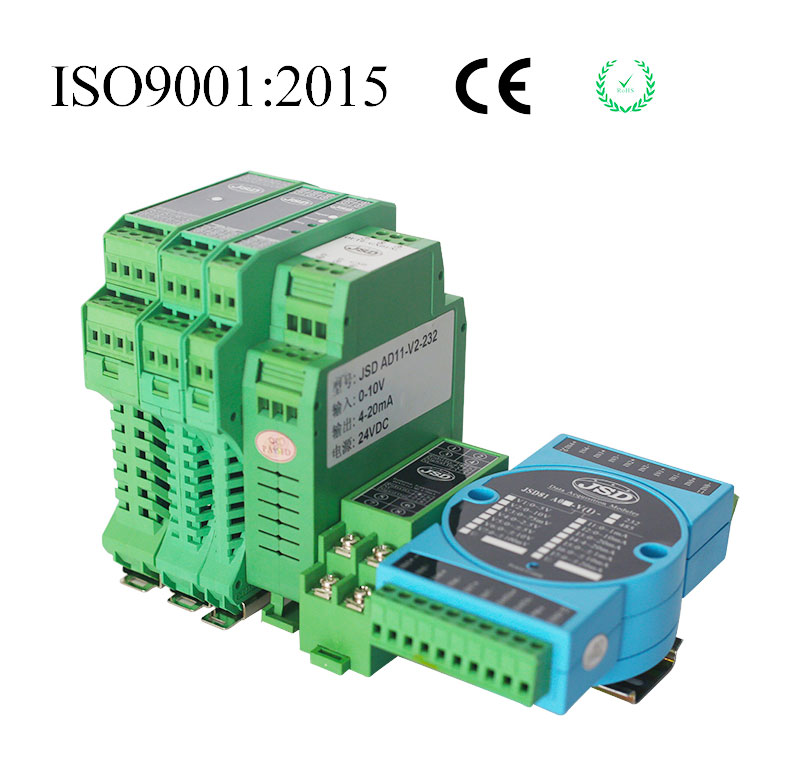

Isolation amplifier picture:
High accuracy, high linearity, high isolation voltage, the international standard signal input and output, the international standard DIN35mm rail mounting
|
|
|
